1.0 Tonne Self Loading Cable Trailers

1.0 Tonne Self Loading Cable Trailers

Product Overview

Description

1-Tonne Self Loading Cable Drum Trailer is a unique design with two vertical lift hydraulic cylinders and hand-pump control. This small size trailer is ideal to be towed behind a 1-Tonne utility or small truck. The drum capacity is 1200mm diameter x 900mm wide. The frame can be offered in hot dip galvanized version or powdercoated blue. The trailer utilizes a standard 50mm ball-type coupling and is supplied with mechanical brakes. The suspension is a unique design using lever type airbag suspension eliminating the need for an axle beam. The drum spindle is 55mm in diameter and has a locking system to prevent it from moving while in transit.

Specification

Max Drum Mass: 1 Tonne
Max Drum Diameter: 1200 mm
Max Drum Width: 900 mm
Spindle Shaft Diameter: 55 mm
Overall Length of Trailer: 3200 mm
Overall Width: 2100 mm
Overall Height: 1800 mm
Standard Trailer Brake Type: Mechanical

Parts Books & Operating Instructions

The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.

Change in Specification

Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its representatives.

Warranty

12 months parts and labour in accordance with guarantee and sales conditions.

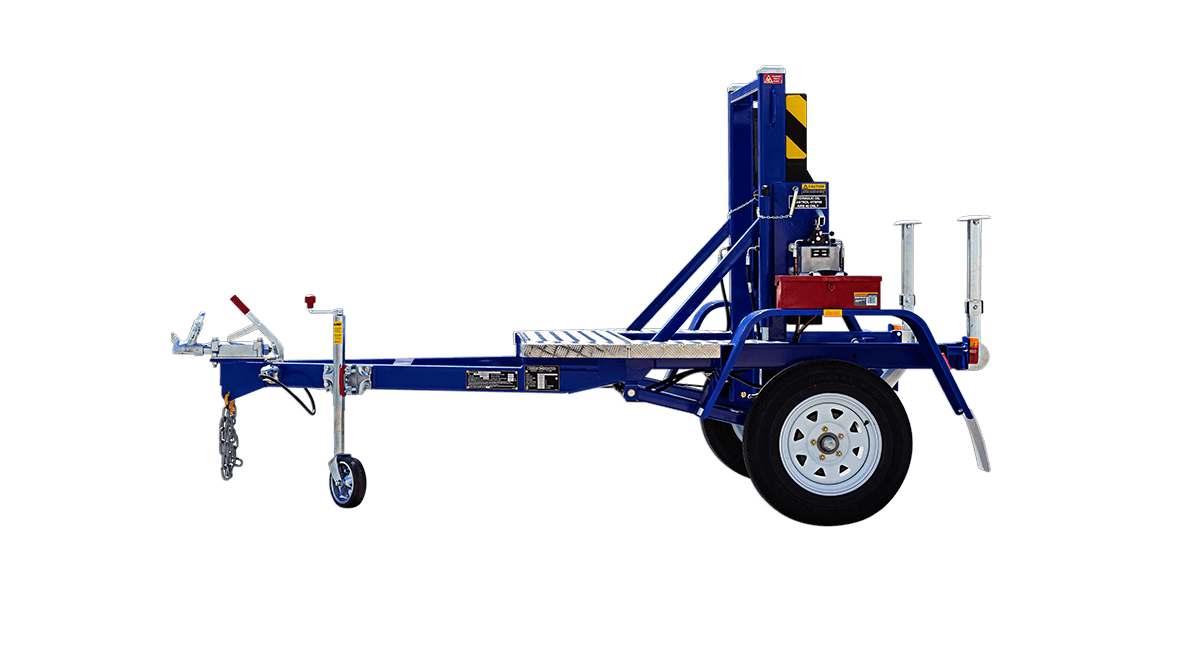

360 view

0%

    • Trailer frame finished in Powdercoat Blue
    • Tyres – 14″ x 6″
    • ADR Approved mechanical over-ride brakes
    • Hydraulic hand-pump for raising and lowering the drum
    • Rear Jackleg/Stabilisers.
    • Drum spindle diameter – 55mm
    • LED lights
    • 1000mm Split drum
    • 1200mm Split drum
    • DC Pump
    • Spare wheel and carrier
    • Electric Brakes
    • Transformer carrier and environmentally safe transformer box (see picture)
